Upgrading the Durst C35

Upgrading the Durst C35

The C35 was an entry level colour 35mm enlarger made by Italian firm Durst in the early 1980s. It had a sister model called the C65 (yes 65) that was designed for up to 6×6 negatives. The only difference between the two models was the supplied mixing box, negative carrier and lens, they otherwise shared all the same components. From my searching it seems like the C65 is rather rare, especially compared to the C35 which can be easily found on eBay or at specialist photography stores that carry secondhand kit, usually for around £50 or less.

Upgrading to an LED light source

The main weakness of the C35 (and C65) is the light source. They were originally designed to be used with a 55W reflector bulb. When paired with the mixing box diffusor this was decidedly dim compared to an enlarger using a condensing lens. Luckily the lamp fitting takes a standard E27 Edison screw mains voltage bulb, so we can bring things into the 21st century by fitting a much brighter LED bulb.

I recommend the Philips Corepro LED bulbs, you’ll want a cool white version because photographic paper reacts primarily to blue light. Don’t cheap out on the bulb as you want something that will emit an even and wide spectrum of light.

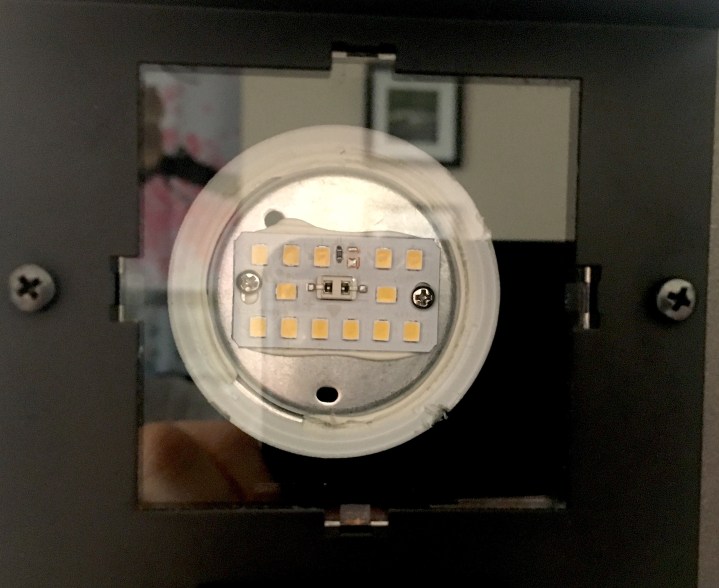

Philips Corepro LED bulb with diffuser removed.

To level up the light bulb even more for our purposes I recommend (carefully) removing the opal diffuser from the bulb itself. This means more of the light will go directly into the mixing box instead of bouncing around in the lamp housing. On the Corepro bulbs this is simply held in place with adhesive and can be pried loose with a flat head screw driver without too much difficulty. Obviously don’t do this while it’s plugged in or turned on and don’t touch the exposed LEDs or you risk electric shock! Once installed in the enlarger the bulb will be safely behind a glass heat shield.

Note that I’ve only tried black and white multigrade printing with an LED bulb, I can’t guarantee you’ll get great colour results using one; but then if you’re serious about colour printing the C35 isn’t a good option anyway given the lack of a proper cyan filter or voltage regulator.

Upgrading the Lens

The C35 comes with a fairly basic, plasticky 50mm f2.8 lens Durst brands as a Neotaron. Mine was full of fungus and refused all attempts at disassembly so I was unable to clean it. The C35’s lens board will take any Leica M39 screw mount lens so you have plenty of upgrade options.

Durst also made a very nice premium 50mm f2.8 lens with the Neonon name. This is an excellent quality lens that generally sells for a lot less than other popular enlarging lenses from the big brands. If you’re looking for a 50mm lens for your C35 this is what I’d recommend.

Note that due to the maximum column height of the C35 you won’t be able to make much more than a 9.5×12″ print with a 50mm lens. If you want to print bigger you either need to find a wide angle 40mm lens or rotate the column on the enlarger so it projects on to the floor. Sadly you can’t rotate the enlarger head to project on to a wall.

If you have a C65 or an upgraded C35 that can handle 6×6 negatives, you’ll also need a 75 or 80mm lens. Durst made a fairly dark 75mm f4.5 lens, but I’d recommend looking for something a little brighter. I have an inexpensive Meopta 80mm f4 that came bundled with my old Gnome enlarger. Unfortunately it’s too big to use the C35’s swing in red filter, but that’s not the end of the world.

Upgrading the C35 to handle 6×6 negatives

The incredibly rare Durst MEKIT 65 6×6 upgrade kit for the C35

As I mentioned at the start of the post, the only differences between the C35 and C65 are the negative carrier, mixing box and lens. So it stands to reason you can simply upgrade by swapping these components. Indeed Durst sold a kit called the MEKIT 65 for just this purpose. Unfortunately despite how common the C35 itself is, these kits are exceptionally rare*. So this part of the guide will probably only be helpful to a small number of people, but given the absence of any real information about it online I thought I’d try and fill the void.

* Another source of these components (other than the kit) might be a broken C65 – as long as you have at least the negative carrier and intact mixing box you should be in business.

I was extremely lucky and did manage to find a MEKIT 65 the other week by chance, albeit missing the 75mm f4.5 lens. As mentioned above I already own a Meopta 80mm lens so this wasn’t an issue.

However it wasn’t until after ordering I noticed a problem when examining pictures of the kit – on my C35 the magenta and yellow filters are integral to the mixing box, but the MEKIT 65 seems designed for a version of the C35 where this is instead fixed to the lamp housing. Oh dear!

So it turns out there are two versions of the C35, my one that is presumably a late model, whose main differentiating feature seems to be illuminated scales on the mixing box and the original which didn’t have this. The illuminated scale model for some reason moved the yellow and magenta filters to the mixing box itself, where as on the older model this was on the lamp housing.

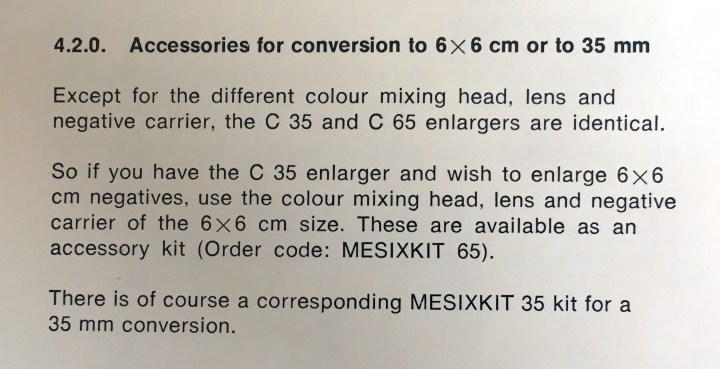

From the manual, MESIXKIT 65 vs MEKIT 65

Checking the manual that came with my C35 it still talks about the enlarger being upgradable but makes no mention of the MEKIT 65 and instead mentions MESIXKIT 65. Searching for MESIXKIT 65 turned up nothing of use.

After further inspecting both my mixing box and pictures of the MEKIT 65 one, I became convinced it would be possible to retrofit the colour filters to it as the overall design of the box itself was largely unchanged. Today I put that to the test as the upgrade kit was delivered!

The MEKIT 65‘s 6×6 mixing box on the left with my ‘new style’ 35mm box on the right (the apparent size difference is due to the added height of the colour filters on the back).

It was straight forward to remove both the metal plate from the 6×6 mixing box and the colour mixer from the 35mm mixing box. They both attach in the same manner at the top of the box with two little hooks that clip into the plastic, but they are screwed into slightly different locations at the bottom.

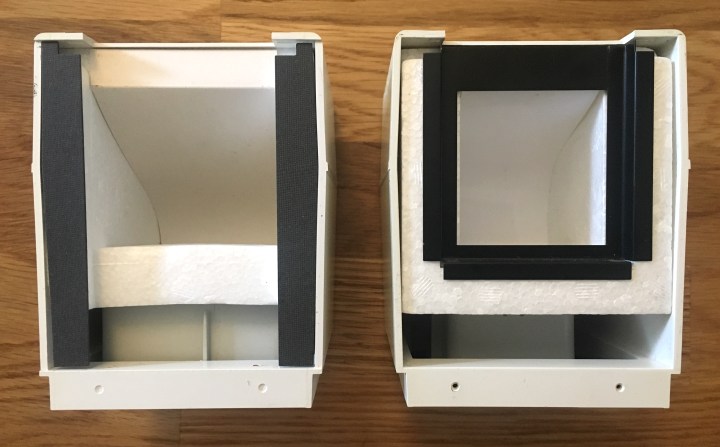

Mixing boxes with the backs removed, MEKIT 65 on the left again.

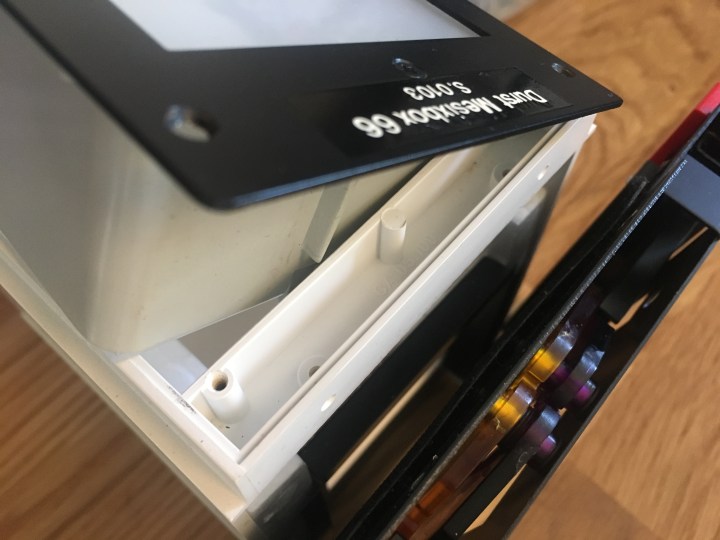

Interestingly there are indents where the screws should go on the 6×6 version of the box, presumably that isn’t a coincidence! I removed the black card baffles and swapped the metal filter holder over from the 35mm mixing box. It fit perfectly so that was a good sign (the 35mm box still has a 6×6 aperture where it meets the lamp housing).

Next up I tried to fit the colour filter plate and thankfully it simply slotted into place. The metal plate from the 6×6 mixing box would not fit the 35mm box however – although that’s not a concern here, it does mean you might have difficulty if you were trying to fit a MESIXKIT 65 to an older style C35 for some reason.

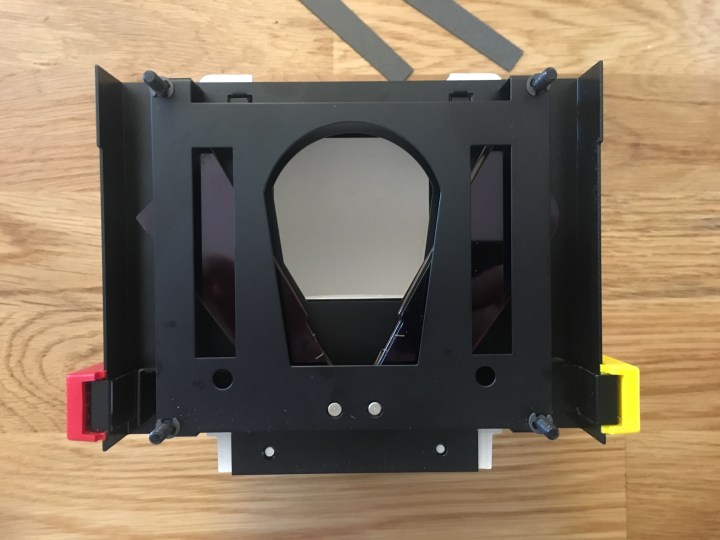

The 6×6 mixing box with colour filters attached but not yet screwed in.

Now it was just a case of screwing the colour filter plate into the 6×6 mixing box. First I removed the diffuser from the bottom of the box to make sure I wouldn’t be damaging anything with the screws (and to give it a clean). There was just an empty void where the screws were going so I had nothing to worry about. The plastic is fairly soft and it wasn’t hard to drive the screws from the 35mm mixing box into it without risking cracks.

Checking the area the screws would be tapped into.

After getting the screws in, I blew out any remaining dust with a blower, gave both sides of the diffuser box a gentle clean and then screwed that back in place.

The assembled MEKIT mixing box with colour filters.

The final step then was to simply affix the mixing box with colour filters back to the enlarger. This is super easy as there are four fixed bolts on the back of the colour filter plate that correspond with holes on the lamp housing, then it’s just a case of tightening 4 plastic nuts to lock it into position.

So that’s how you fully upgrade your Durst C35 to handle both 35mm and 6×6 negatives, at least if you end up with a mismatched enlarger and upgrade kit! Knowing now that there are multiple versions of the C35, if I were buying one today I’d look for the older model as it would be easier to upgrade and the illuminated scales are really not worth the extra hassle.

Darkroom Printing

Darkroom Printing

One of the benefits of being in a camera club full of largely retired people who were all into photography long before digital was ever a thing, is that lots of them have old film, paper and gear lying around they’re happy to give away.

Last year I was offered a photographic enlarger for making prints, but I initially turned it down because I didn’t think I’d have the space to set up a darkroom and use it. Well, turns out with a little imagination our windowless bathroom actually converts into a pretty tidy darkroom with fairly minimal setup and teardown – thankfully we also have an ensuite so my partner can cope with this arrangement with only minimal grumbling

So I took possession of an old Gnome enlarger of 1950-60s vintage, from Alan at the camera club. I bought some trays for the various chemical baths and was given an enlarging easel, safe light, focus finder and some 5×7″ Multigrade paper to play with.

The printing process is very simple, but has quite a few steps that you have to work through methodically. Basically you need to put a negative into the enlarger, focus that at whatever size you want to print it, do a test run with a strip of paper that you expose incrementally to the projected light to determine the optimal exposure time, then repeat the process with that exposure time for a full sheet of paper.

Working with my Gnome Rangefinder enlarger.

The process of actually developing black and white photographic paper is identical to that of processing black and white film. That is a three step process of moving the exposed paper between a developer bath, a stop bath and a fixer bath. Paper development is fast, taking just a minute to develop, about 10 seconds to stop and another minute to fix. Then just a couple of minutes of washing and you have a print ready to dry. Unlike normal film, photographic paper isn’t sensitive to red light so you can safely do all this under the dim red glow of a safe light to see what you’re doing.

When it comes to printing there are two basic paper types, resin coated and fibre. These come in various finishes from full gloss to matt. Resin coated is the easiest to work with (and all that I’ve used so far). It dries quickly and doesn’t wrinkle. Fibre based paper is more like regular paper with a photographic emulsion coated on to it and it requires significantly longer to wash and dry. Also care has to be taken to flatten it out as it wrinkles easily when drying. Fibre paper is generally regarded as offering a nicer finish than resin so it’s something I will have to try sooner or later.

Since my initial forays on 5×7″ paper I’ve been given a variety of larger sizes from 8×10″ to 12×16″. My trays only fit up to 9.5×12″ paper and I can’t reasonably fit larger ones into the bathroom, but I’ve now acquired a cheap drum for doing up to 12×16″ paper on my Jobo rotary processor that I usually use for film development. Once paper is loaded into the drum it can also be processed in full daylight as it has a light trap allowing chemicals to be poured in and out without exposing the paper.

A recent print made on my Durst C35 on 8×10″ paper.

A few months ago I was able to upgrade my enlarger to a Durst C35 from the early 1980s. It’s considerably smaller and easier to handle than the rather cumbersome Gnome. Retrofitted with a modern bright LED bulb it also probably works better now than it ever did with a dim, hot 55W incandescent in it. The one downside of the C35 is that it lost me the ability to print medium format negatives, but that’s something I hope to rectify soon as I’ve finally sourced one of the incredibly rare upgrade kits for it.

I’m continuing to enjoy my analogue journey as you can probably tell, and darkroom printing is a fun and rewarding addition to that. It’s interesting to learn new techniques like dodging and burning, split grading to control contrast, adding borders and so on. It’s a cliché of course, but it really is a magical process. There’s more than a century of accumulated knowledge and science behind it, but the hands on nature of the process and your ability to play with it anyway you want, is a long way removed from the relentlessly automated, digital world we’ve created for ourselves.

If you’d like to see more of my darkroom prints take a peek at my Etsy store! They are of course genuinely hand made and each one is unique thanks to the analogue process.

Shooting Models in a Derelict Mansion

Shooting Models in a Derelict Mansion

Where better to spend the day after the coldest night of the winter, than a derelict mansion riddled with broken windows, standing around behind a camera? Well that’s how I spent the 3rd of February – at Woolton Hall, a once grand, but now semi-derelict mansion on the outskirts of Liverpool. The event, organised by photographer John Ayliffe, brought together a number of photographers, models and makeup artists. I officially went as an assistant to my friend Rob Lycett and helped him lug his gear to the second floor and with lighting models.

I’ve been keen to try shooting my film cameras with studio lighting and this was the perfect opportunity to try it out. I went with my Bronica SQ-Ai medium format camera and my Vivitar v335 35mm SLR to shoot with my Pentax glass. (I’d have loved to use my Pentax MX, but didn’t want to be restricted to its meagre 1/60 flash sync speed).

The Bronica was loaded with good old HP5+ and owing to a sudden parting of the clouds, was mostly shot with natural light as it was just do damn gorgeous in the room we were in. The Vivitar on the other hand had the sublime Kodak Portra 160 loaded in it and was used extensively with Rob’s studio lighting setup. The light setup most used was a giant softbox on a boom to provide fill light and a gridded (or in some cases bare) speed light to add rim lighting or more directional hard lighting. We also made good use of a large reflector, both in the naturally lit shots and the strobe ones.

The models were all very professional and took the freezing conditions in their stride – helped by a copious number of hot water bottles and some time basking by infrared heaters, in the one part of the mansion where the electric still worked, between shoots.

Overall it was a great experience and something I hope to do again, albeit preferably in warmer conditions next time!

Where to Find Analogue Photography Stuff in the UK

You might imagine that it’s hard to get hold of film and analogue photography equipment now in the late twenty teens, but fear not! There are actually a growing number of businesses specialising in film photography. To make life easier for people just getting back into film I thought I’d compile a list of businesses I’ve come across while on my analogue journey. This is not an exhaustive list by any means, but should give you a solid starting point.

Last Updated May 2020

7DayShop

Location: Guernsey, Channel Islands
Pros: Excellent prices on film – 5 packs of 120 generally £5-6 cheaper than elsewhere. Good range of Fuji and Kodak films. Bulk discounts.
Cons: Only Fuji, Kodak and Ilford films, no chemistry, cameras or lenses. Ilford film prices no cheaper than anywhere else.
Other services: No.
Shop you can visit: No.

Ag Photographic

Location: Birmingham, England
Pros: Great selection of films, darkroom papers, chemicals and processing equipment. Excellent prices on Ilford films – FP4 and HP5 120 rolls and 24 exposure 35mm films under a fiver. Discounted 10 packs of Ilford film.
Cons: Very limited selection of camera equipment. Prices on Kodak film not great. Separate website for ordering film processing.
Other services: Full range of development, scanning and printing options here. Darkroom workshops.
Shop you can visit: Yes

Analogue Wonderland

Location: Amersham, England
Pros: Massive selection of fresh film including many obscure and new brands. Every imaginable format. Sample shots for each film. Now carry developing chemistry, analogue merch and more.
Cons: Many of the more interesting items tend to go out of stock quickly. Prices are fairly good, but multipacks can be found much more cheaply elsewhere.
Other services: No.
Shop you can visit: No.

Aperture

Location: London, England
Pros: Good place to look for high end film cameras like Leicas, Rolleis, Contaxes, Hasselblads etc. They also carry a lot of Nikon film bodies and lenses.
Cons: They don’t sell cheap cameras and it can be hard to spot things without four figure price tags – but they are there if you look hard enough! You can’t order online and have to rely on them keeping the stock list on their website up-to-date.
Other services: Camera repair and film processing.
Shop you can visit: Yes

Camera House

Location: Birmingham, England
Pros: Good range of second hand darkroom equipment, often at competitive prices. Lots of inexpensive low-end film cameras.
Cons: Website can be a pain to navigate unless you search for specific items. Tend not to have much mid-range or high end gear.
Other services: Offer gear rental and part exchange.
Shop you can visit: No

Dale Photographic

Location: Leeds, England
Pros: Small selection of second hand film cameras and films. Helpful and knowledgable staff. Good prices on Ilford film. Selection of Ilford papers and darkroom chemistry.
Cons: Very limited film camera and lens selection.
Other services: Repair service.
Shop you can visit: Yes

Ffordes Photographic

Location: Inverness, Scotland
Pros: Great selection of second hand analogue equipment, fair prices. Excellent prices on Ilford film with discounted 10 packs. They now carry B&W film chemicals and Kodak film.
Cons: Second hand camera stock tends to be limited to less desirable or very expensive models.
Other services: No.
Shop you can visit: Yes

FirstCall Photographic

Location: Taunton, England
Pros: Huge selection of new photography equipment with a great selection of film, darkroom papers and chemistry. Occasional very good deals on expired/short dated film and darkroom supplies. Good range of Jobo tanks, processors and accessories.
Cons: No secondhand equipment. Several times I’ve ordered from them and have had films substituted without warning.
Other Services: Digital to film transfer (yes you read that right).
Shop you can visit: No

Ian B. Foto

Location: Rickmansworth, England
Pros: Specialises in medium format Bronica, Mamiya and Fuji studio cameras and accessories. Good range of obscure accessories. Fair prices with small discount for paying by bank transfer.
Cons: Very limited selection of complete camera systems, this store is best for accessories and lenses. Doesn’t seem to list new items that often.
Other services: ECN2 processing.
Shop you visit: No, but does allow collections.

Ilford Photo

Location: Mobberley, England
Pros: Everything Ilford makes direct from the source.
Cons: Unfortunately you can find everything cheaper elsewhere. The price differences aren’t massive but will add up if you’re making a big order.
Other services: They have a separate photo processing service called Harman Lab.
Shop you can visit: No

Janet Green Photographic

Location: Halifax, England
Pros: Fair selection of films and a window full of secondhand cameras. Very attractive prices on some of their second hand camera gear!
Cons: No website. Film prices higher than you’d pay online.
Other services: Photo printing. Not sure if they offer development.
Shop you can visit: Yes

Nik & Trick

Location: Folkestone, England
Pros: Good selection of films including bulk rolls. Sell 127 and 620 film! Good range of chemistry and darkroom supplies.
Cons: Limited selection of secondhand cameras. Items often out of stock.
Other services: Full range of development (C-41, E6, B&W, ECN2), printing and scanning services.
Shop you can visit: Yes

Parallax Photographic Coop

Location: London, England
Pros: Good selection of films including some rarer emulsions like Fuji Industrial and JCH StreetPan. Sell single rolls of films that usual only come in multipacks. Bulk rolls of Foma films. Fair selection of chemistry (including for alternative processes) and processing equipment. Nice selection of premium photo books and zines. Good selection of darkroom papers.
Cons: Their film prices are slightly higher than you can find elsewhere. At any one time quite a few things tends to be listed as out of stock.
Other services: No.
Shop you can visit: Yes.

Real Camera Co.

Location: Manchester, England.
Pros: Great selection of second hand film cameras and lenses. Nice new website and also an eBay store.
Cons: Limited selection of cameras online, tend to be more premium end (Rolleiflexes, Leicas and Hasselblads). Limited selection of film in store.
Other services: Offer camera repairs.
Shop you  can visit: Yes

Secondhand Darkroom

Location: Midway between Cheltenham & Oxford, England
Pros: Great selection of darkroom equipment, mostly used but also some new. Fair selection of cameras and lenses. Ilford film, papers and chemistry. Good prices for Ilford film.
Cons: Some of their camera and lens prices are ridiculously expensive (although this isn’t universally the case). Clunky website.
Other services: No.
Shop you can visit:
Yes

SilverPrint

Location: Poole, England
Pros: Good selection of film at very reasonable prices (24 exposure rolls of FP4 and HP5 for less than £4!). Good selection of European films like Adox, Rollei and Agfa. Very good selection of B&W and colour chemistry, including in individual C-41 components. Also stock chemistry for alternative processes. Good array of darkroom bits and bobs, paper etc. Good prices on Jobo 1500 series development tanks.
Cons: Film cameras limited to disposables and pinholes, no secondhand stock.
Other services: No.
Shop you can visit: No

Speed Graphic

Location: Bordon, England
Pros: Good selection of films, including Bergger and Adox as well as the usual Kodak, Ilford and Fuji ones. Excellent prices on Ilford film. Broad selection of chemistry for B&W, colour and alternative processes. Good array of darkroom equipment and paper. £4.99 next day delivery.
Cons: Kodak and Fuji film prices nothing to write home about, although they do have Portra 160 120 5 packs for under £30. No secondhand film cameras or lenses.
Other services: No
Shop you can visit: Yes – warehouse.

West Yorkshire Cameras

Location: Leeds, England
Pros: Great selection of second hand cameras and lenses. Fair selection of film. 3 month warranty on second hand equipment. Often have a few rolls of expired film for grabs fairly cheaply. Small selection of Ilford chemistry.
Cons: Film and chemistry only available in store.
Other services: Offers film development via a 3rd party service.
Shop you can visit: Yes

European Sites that Deliver to the UK

MacoDirect

German based MacoDirect sell a huge range of films and analogue photography equipment. They’re also responsible for the Rollei branded line of products, including films and darkroom papers. Take advantage of your ability to easily import things from the EU while you still can 😦

Climbing Pen-y-ghent with Two Rolleis

Back in May my partner convinced me to go climb Pen-y-ghent with him, one of the Yorkshire Three Peaks. At 694m, or 2,277 feet, it’s not the tallest mountain but it’s still a fair challenge, and the total hike which took us from Horton in Ribblesdale to Ribblehead was on the order of 12-13 miles. I took two film cameras to document the trip, my Rollei 35 SE loaded with Fuji Neopan Acros 100 and my Rolleicord Vb loaded with a roll of Provia 100F. I had the 16 exposure kit in my Rolleicord as I wanted to maximise the number of shots I had. I didn’t break out the Rolleicord until after climbing to the top of the mountain so all the shots in colour are from the decent.

The path was pretty gentle to begin with and we joined a fairly steady flow of walkers, setting off at about 10 in the morning.

The path got gradually more rocky and uneven as we neared the foot of the mountain.

The path gradually gave way to a stony steps. As the route is so well walked these stone paths are essential to prevent the terrain from getting eroded into gullies.

Looking up towards one of the peaks with the scree slopes beneath. There are a few points where some mild scrambling and rock climbing are required to reach the summit from this side, but it’s all pretty tame really.

Getting near the top the views are already looking pretty spectacular with clear views for a good few miles before the haze sets in. Being a national park, there are no pylons or big roads to mar the landscape.

Looking back at the long way down the mountain side.

On reaching the summit we waited our turn to get a selfie by the OS trig post. I forgot to get a shot on film so this is from my iPhone, looking back at the path we’ve just climbed up. Now with the hard bit done it was time to breakout the Rolleicord and get some colour shots.

The previously clear blue skies started to get a few clouds as we began our decent on the opposite side of the mountain. The path on this side is largely made of big stone steps.

You can just make out the white line of the path we’ll be walking, snaking off into the distance. You can even just make out the Ribblehead Viaduct over the cloud shadow on the mid-righthand edge.

Looking back over my shoulder I could see the peak of Pen-y-ghent slowly receding.

Getting a little more cloudy still.

Rollei Vb w/ Xenar 75mm f3.5, 16 exposure kit. Shot on Fuji Provia 100.

Every structure was encrusted with a mix of moss and lichens, as seen here on this old gate post.

I used a yellow filter on the Rollei 35 which helped brighten the path and some of the moorland reeds and grasses.

Towards the end of the hike, the footpath took us through a farm yard. Look at the date above the door of this farmhouse – that building has stood there since 1681!

With the exception of the ever present winding drystone walls, the land is pretty bare. This ruined barn sits in rather splendid isolation.

We encountered a lot fewer walkers on the far side, you can just start to make out some of the cool limestone pavements the area is known for in the distance in this shot.

I’d love to come back here when I can spend a bit more time to explore and photograph the limestone pavement.

The background haze gradually increased as the afternoon wore on.

Ribblehead Viaduct

The last stretch of the walk ran along the road to Ribblehead and as it wasn’t very visually interesting, this part of the hike really felt like it dragged out. When the amazing Ribblehead Viaduct finally came into view though it was all worth it. Unfortunately to get a good shot of the viaduct would have required a fair bit more hiking down into the valley it crosses – something neither of us had the energy to do at that point. So instead after having some refreshments at the fairly mediocre Station Inn pub, I quickly ran up the road to get this view from behind the viaduct before we had to dash off to catch the train home. The trains only stop every 2 hours at Ribblehead so we were keen not to miss it.

Thoughts on Reflex

So last November the Reflex camera was launched to much fan fair on Kickstarter. The aim was noble, to produce a new 35mm film SLR with a bunch of innovative features. Riding the resurgent interest in film photography, the campaign quickly surpassed its funding goal raising over £131K. A very impressive feat and a real vote of confidence in the future of analogue photography. I too backed the project, albeit only for £5, as I was dubious at the time they’d ever ship their ambitious camera design, but wanted to chip in anyway.

Come July of 2018 and I finally got my reward for that £5, a tote bag. Delivered an impressive 7 months later than promised. Now Kickstarter is rather infamous for projects missing their delivery dates by sometimes ridiculous margins, but I fear my tote bag example, where an off the shelf product that simply needed to be branded and posted out taking half a year longer than promised, is rather indicative of what is likely to be a very rocky and potentially disappointing outcome for Reflex’s more enthusiastic backers.

My concern from the get-go with Reflex was that it was far too overly ambitious for a first attempt at making a camera by a team of inexperienced people. Interchangeable lens mounts, bluetooth smartphone connectivity, swappable film backs, flash and constant lights. It all sounds great, but maybe pick one of those things and make a functioning camera that can be mass produced and sold for the optimistic price of £350 and then start worrying about those other features. Trying to achieve it all from day one is a recipe for, well… failure, because I guarantee you they will drop one or more of those features or the camera will never see the light of day.

One of the main problems they are going to face will be manufacturing tolerances – well after actually finding manufacturers in the first place. You see for every deviation you make from a camera simply being a light proof box with a single hole to let in light to expose a film/sensor, you increase your complexity and chances of failure by a huge margin. If you’ve ever shot any analogue camera you’ll know light leaks can be a real problem if things have gone even slightly out of alignment, especially in a modular camera as there are multiple interfaces that must be kept perfectly aligned and sealed.

The Reflex camera introduces multiple points where light leaks can occur due to its interchangeable backs and lens mounts. It only takes one of these parts to vary slightly from spec for problems to potentially occur – and remember these things are going to be stamped out at some factory in China, not hand crafted by artisans with decades of experience in building analogue cameras in Japan, Germany or Switzerland, like most of the treasured film SLRs of yore. Even if you can avoid light leaks, any slight give between the back, body and mount that moves the focal plane and lens from being perfectly parallel to one another will result in focus shifts. Or if the lens mount is say just a hair thicker than it should be, you may lose the ability to focus to infinity.

Now Reflex isn’t the first company to ever try making a 35mm camera with interchangeable backs. Zeiss, Adox and Mamiya all tried and later abandoned cameras with interchangeable magazines many decades ago. Notably none of the major camera manufacturers ever attempted it. This alone should be a red flag – if it was ever a good idea, why didn’t it catch on during the heydays of film photography? Why was there never a Nikon or Canon pro body where you could swap films on the fly? Why did interchangeable backs remain the sole preserve of medium and large format photography?

Perhaps you think I’m being overly critical and not giving enough credit to advances in manufacturing technology that have come about over the last couple of decades, and perhaps you’re right. But yesterday I had an email from Reflex admitting that of course they had no chance of meeting their deadline for shipping this year and bizarrely announcing a whole raft of new products, including a mini lab film processor, a film scanner and a series of lenses. Apparently this is needed for economies of scale with as yet unfound manufacturing partners. Although what components will be shared between a mini lab film processor and an SLR I really have no idea. What should really worry anyone who’s invested more in this Kickstarter than the £25 for a camera strap, is that over half a year later it sounds very much like they’re still struggling to find companies to make the camera’s parts. Introducing more complexity by designing other non-trivial products is either an act of desperation or madness. Remember another Kickstarter project, the Lab Box film processor, also from last year? That was a much simpler product than what it sounds like Reflex is proposing with their mini lab and raised around half a million pounds, nearly four times what Reflex did – and even that hasn’t shipped yet nearly a year after it was promised.

Anyway I honestly hope Reflex succeeds and manages to ship some kind of camera because I don’t want to see the backers out of pocket or another negative headline about film photography. However for that to happen I think they are going to have to really reassess what they can and can’t deliver in a version 1.0 product on a shoestring budget.

Addendum:

I’ve exchanged some comments with Reflex on Kickstarter and they say that they’ve been planning to build out an ‘ecosystem’ under the Reflex brand since day one. But they hadn’t articulated what other products that might encompass until now for strategic reasons.

I said I thought they should be more transparent about their operations and funding, noting that the mini lab project alone is a major undertaking and going to require significant funding to come to fruition. How many people would have plunked down £500 or more for a camera if they knew it was being developed along side other complex products? Surely that’s an undisclosed and significant risk? It seems like the profits from selling these other items is intended to help fund the Reflex camera which in itself raises more questions. I imagine if you’d asked anyone at the outset of the Reflex campaign what they understood  ‘ecosystem’ to mean, they probably would have said more lens mounts, branded camera straps and so on, rather than lenses, a film processor and scanner. They almost certainly wouldn’t have expected the development of multiple complex products in tandem and presumably launching before the camera they were being asked to fork over money for.

I still remain some what dubious about the claims developing these other products is going to really save them any serious money that isn’t simply going to be eaten up by more R&D, tooling and assembly costs. I guess we’ll see. If they can deliver on all their promises it will be a major boon to the film community – but there are a lot of risks, both in the design of the Reflex camera, as I note above, and in these new products. Things will be interesting to watch unfold – all I can say is that I’m glad I don’t have £350 (or more) on the line.

Project: Hopes & Dreams

I should preface this by saying I’m really not that interested in football, and find myself somewhat bemused by the wave of fervent excitement (and almost always dashed hopes) that wash over the nation every 4 years with the World Cup. But this year was a little different, for once our team actually did fairly well, and I found myself fascinated by the St. Georges flags that were suddenly popping up everywhere. The idea for a project sparked into my mind. So here I give you, Hopes & Dreams. A mini project documenting how England’s brief blaze of glory at the 2018 World Cup expressed itself in the windows, on the cars and down the streets of my corner of West Yorkshire. All shot on my newly acquired Pentax MX on a mix of Fuji Neopan Acros 100 & ADOX Silvermax 100.



Football did indeed for a little while come home.
